3 Layer Dishwashing Tablet Rotary Tablet Press Machine

Name: 3 Layer Dishwashing Tablet Rotary Tablet Press Machine
Brand: chenguang
Price: 1 USD

Brand Name : chenguang

Model Number : ZPW23

Certification : CE SGS

Place of Origin : China

MOQ : 1

Price : negotiable

Supply Ability : 50sets per year

Delivery Time : 30 Working days

Packaging Details : wood pallet

name : 23 dies rotary press machine

character : press 2 or 3 color dishwasher tablet

voltage : 380v 3p

weight : 3200kg

port : shanghai port

delivery : 40days

certificate : CE SGS

feeding : force feeding system

Contact Now

factory price 3 layer dishwashing tablet rotary tablet press machine

Main application

Based on ZP27 Rotary tablet press machine, our factory improved it into ZPW23. This machine is mainly for pressing the tablet of double layers or three layers. It mainly used in pharmaceutical industry, chemical industry, electronic products and food.

Features

Machine meets GMP and made in stainless steel. The inner tablet press surface has been special treated, which could keep surface luster and avoid cross contamination.
Equipped with transparent window which could help to observe the status of pressing tablets. Transparent window could be fully opened, easy to clean and maintain.
Machine speed could be adjusted. by VFD, easy operation.
Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
Transmitting system is sealed in the oil box under the main machine, which works separately. No pollution and easy to send out heat and resist grinding.
Machine equipped with suction machine which could absorb the powder of working area. keep machine without production dust.

Technical parameter of ZPW/23 Two or Three Layer Press Machine

Dies (sets)	23
Max. Pressure (KN)	100
Max. dia. of tablet (mm)	40
Max. Thickness of largest tablet (mm)	14
Max. Depth of fill (mm)	25
Max. production capacity(pcs/h)	31500/34500
Rotational diameter(mm)	445
Rotational speed of revolving table(r/min)	10-25
Diameter of middle mould (mm)	52
Highness of middle mould(mm)	34+4
Diameter of up and low punch pole (mm)	42
Length of the upper punch pole (mm)	180
Length of the lower punch pole(mm)	180
Overall dimensions(mm)	100012501900
Net Weight (kg)	3200
Motor model	YU132M4A
Motor(KW)	7.5
Voltage(V)	380

Product Tags:

100KN Rotary Tablet Press Machine

3 Layer Dishwashing Tablet Press Machine

380v 3p Tablet Compression Machine

Cheap 3 Layer Dishwashing Tablet Rotary Tablet Press Machine for sale

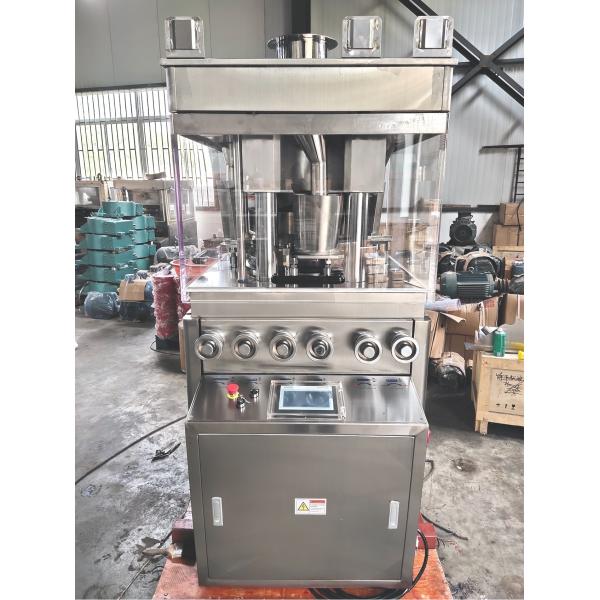

3 Layer Dishwashing Tablet Rotary Tablet Press Machine Images
