Stable Performanc Tablet Granulation Machine Fluid Bed Granulating Drier

Certification : ce

Place of Origin : China

feature : s: High-accuracy, Long Service Life, High Productivity

product : Medicine Swing Granulator

Material : Stainless steel 304/ Customized

Product Type : food and medicine granulator

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops

Condition : new

Payment Terms : L/C, T/T, D/P, Western Union

Packaging Details : Metal frame with poly-wood package

Delivery Time : 30DAYS

Price : Negotiable

Contact Now

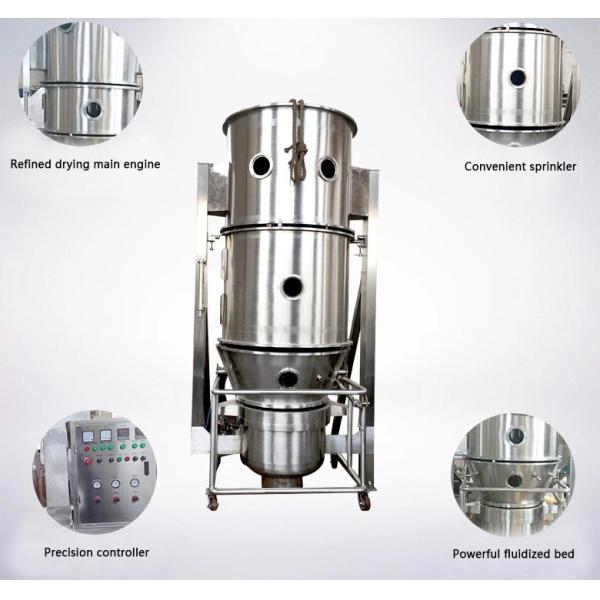

7-Fluid Bed Granulating Drier

Product Description

Principles

The powder granule in the container (fluidization)appear in the state of fluidization.

It is preheated and mixed with chen and heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the container. It makes the some particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulation is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and Porous granules.

Item		Unit	type
Item		Unit	5	30	60	120	300	500	800-1000
Container	Volume	L	22	100	220	420	1000	1500	By client
Container	Diameter	mm	400	700	1000	1200	1600	1800
Capability	Min	Kg	4	15	30	80	150	250
Capability	Max	Kg	6	45	90	160	450	750
Fan	Capacity	m³/h	1200	1800	3000	4500	7000	8000
	Pressure	mmH2O	375	480	950	950	950	950
	Power	kw	4	7.5	11	18.5	30	45
Steam expenditure		Kg/h	23	70	141	211	366	451
Compressed air expenditure		m³/min	0.9	0.9	1.0	1.0	1.5	1.5
Weight of the main body		Kg	700	1000	1100	1300	1800	2000
Steam pressure		Mpa	0.3-0.6
Temperature		°C	(adjustable at the range from room temperature to 120°C )
Working time		min	45~90 ( decided in accordance with the proplerties of raw materials )
Field		%	≥99
Noise		dB(A)	≤75dB(A) (When installation.main machine is separated from fan)
Size(LxWxH)		m	1.2* 0.7*2.1	1.6* 1.1*2.5	1.85* 1.4*3.0	2.2* 1.65*3.3	2.8* 2.0*4.0	32.25 4.4
